IggyTop: Immunological Graph Yielding Top receptor-epitope pairings

IggyTop: Immunological Graph Yielding Top receptor-epitope pairings#

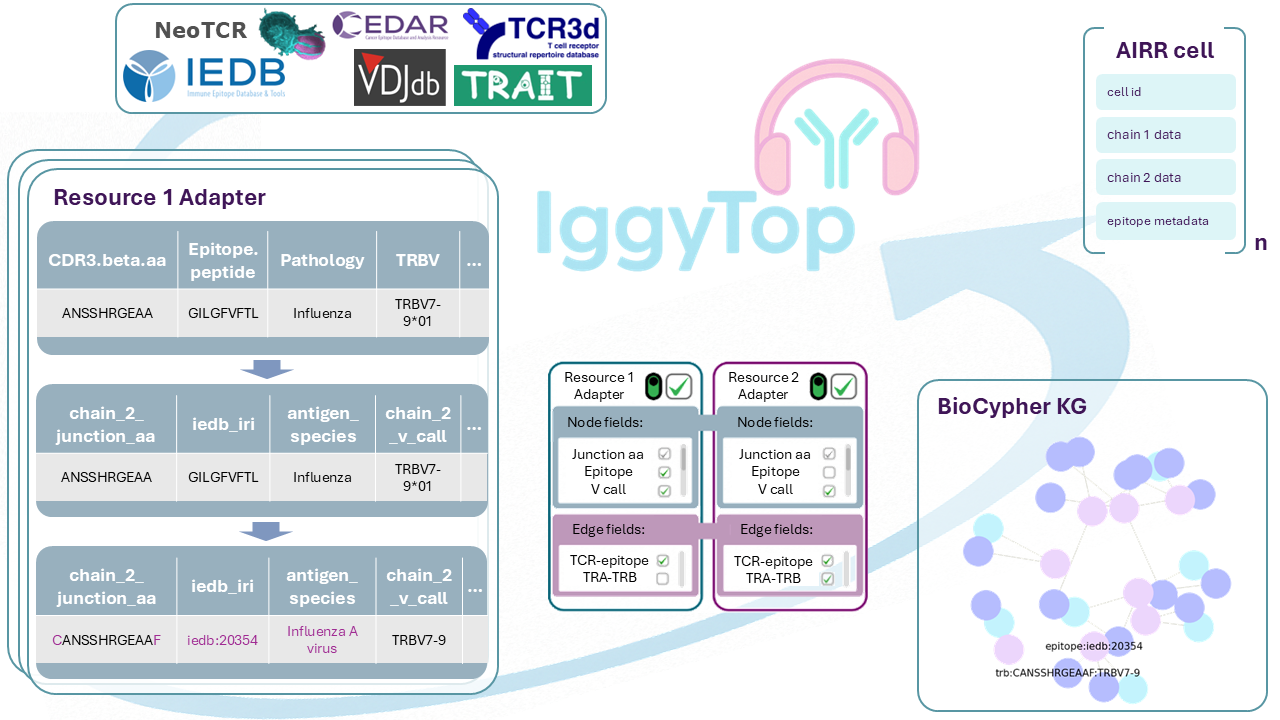

Python Version License docs DOI figure1

This repository uses the BioCypher framework to harmonize databases with existing immunoreceptor-epitope matching information. The aggregated data is provided in tabular and graph formats.

BioCypher provides a modular architecture where each data source is processed through dedicated transformation scripts called adapters. These adapters are the interface between raw data sources and the IggyTop dataset. We use tidytcells to standardize gene names, cdr3 sequences and junction sequences for both BCR and TCR datasets. We aim to follow AIRR and IMGT standards. This project provides adapters for the following databases:

The aggregated data from all adapters is available in the (bimonthly) releases. These releases are used by Scirpy, which provides a simple interface to access the data in anndata format. You can also rebuild the DB using the provided code with custom parameters. On a consumer laptop, building the full DB typically takes 20-30 minutes.

Quick start (Scirpy)#

To use the database in Python, install Scirpy (>=v0.24.0). Then use this function to load the dataset in anndata (tabular) format:

import scirpy as ir

iggytop = ir.datasets.iggytop(deduplicated=True, tag='latest')

# Or (e.g. for VDJdb only)
vdjdb = scirpy.datasets.vdjdb(tag='latest')

Graphs vs. Tables#

Two paths are covered: A tabular path that stacks source databases into a large table (used in Scirpy and Releases), and a knowledge graph path that converts the source data into a graph. Both are documented in the documentation. For details, see Graph Data Structure and Tabular Data Structure.

Prerequisites#

To run DB/graph generation locally:

  • uv: for dependency management

  • docker: optional for Neo4j (see below)

Installation#

  1. Clone the repository:

    git clone https://github.com/biocypher/iggytop.git
cd iggytop

  2. Install dependencies using uv:

    # Core installation (includes dev dependencies)
uv sync

# Include documentation and Jupyter tools
uv sync --group docs

  3. You are ready to go!

    uv run create_knowledge_graph.py

    or

    uv run create_release.py

More information can be found in the documentation.

Documentation#

We use Sphinx for documentation (see ./docs). The full documentation is available online via Read the Docs.

Pipeline#

  • create_release.py: builds every selected adapter’s source table exactly once, then emits the raw merged dataset, the filtered+deduplicated dataset (in anndata/ AIRR JSON format, for integration into Scirpy), and the neo4j knowledge graph files from that same run, avoiding rebuilding the tables multiple times. Each output can be toggled independently:

uv run create_release.py --adapters VDJDB CEDAR --filter-10x

--filter-10x only affects the deduplicated dataset. Use --not_merged, --not_deduplicate or --not_graph to skip any of the three outputs, and --graph-output-format to choose the graph’s BioCypher output format (default neo4j).

  • create_knowledge_graph.py: a standalone, graph-only entrypoint into io.create_knowledge_graph(), useful when you don’t need the AnnData/AIRR outputs. Use the --adapters flag to select specific source databases and --output-format to choose the output (neo4j, networkx or airr; default neo4j):

uv run create_knowledge_graph.py --adapters VDJDB CEDAR --output-format networkx

  • src/iggytop/adapters contains modules that define each data source adapter.

  • src/iggytop/config/schema_config.yaml: defines the schema of the knowledge graph. It is used by BioCypher to map the data source to the knowledge representation based on ontology (see this part of the BioCypher tutorial).

  • src/iggytop/config/biocypher_config.yaml: defines BioCypher parameters such as the mode, separators, and other options. More on its use can be found in the documentation.

Releases, Testing and CI/CD#

IggyTop uses GitHub Actions to automate bimonthly data releases and ensure data integrity through continuous integration. Currently this only involves the tabular part of IggyTop (create_release.py). Check out the latest release here.

Bimonthly Data Releases#

Find the releases here

  • Frequency: Automated releases on the 1st day of every 2nd month (first scheduled on May 1, 2026).

  • Release Assets: Check out the release notes for more information on the released datasets.

Automated Testing#

Before any data is released, the CI pipeline (based on GitHub Actions) runs a validation suite to catch breaking changes in upstream databases.

How to run tests locally:

# Install all dependencies (including docs for notebook testing)
uv sync --all-groups

# Install Jupyter kernel for notebook execution (one-time setup)
uv run python -m ipykernel install --user --name python3

# Run all tests (including notebook validation)
uv run pytest tests/

Why the kernel installation? The test suite includes validation of Jupyter notebooks (tutorials and database summaries) to ensure they execute without errors. This requires a Jupyter kernel registered with the name “python3” to match the notebooks’ configuration. The installation is a one-time setup per environment.

How to test the CI pipelines Ensure you have Docker and act installed, then run:

# Run the workflow
act workflow_dispatch -W .github/workflows/ci_ingestion.yml

Graph visualization using Neo4j on Docker#

This repo contains a docker compose workflow that spins up a Neo4j instance pre-loaded with the full IggyTop knowledge graph from a data release, no local Python/BioCypher build required. To run it, execute

docker compose up -d --build

in the root directory of the project.

At build time, the image downloads knowledge_graph.tar.gz (the neo4j-admin import CSVs + import script produced by create_release.py) from a pinned IggyTop release and bakes it into the image. On first container start, it runs a neo4j-admin database import — the fast bulk-loader Neo4j recommends for populating an empty database — directly against those CSVs, rather than loading the graph row-by-row via Cypher. The imported data then lives in the named volume biocypher_neo4j_volume, so subsequent restarts skip the import entirely.

By default the build uses whatever release GitHub currently marks “latest”. To pin a specific release instead, override the build arg:

IGGYTOP_RELEASE_TAG=data-2026.08.03.063907 docker compose up -d --build

To force a re-import after switching release tags, first tear down the volume:

docker compose down -v

This will start up a single (detached) Docker container with a Neo4j instance containing the full knowledge graph, which you can connect to and browse at localhost:7474 (note that this can take a couple minutes as the graph is large). Authentication is set to neo4j/neo4jpassword by default and can be modified in the docker-variables.env file.

Open http://localhost:7474 to access the Neo4j database. You can now run queries against the database — the full graph has over a million nodes, so scope exploratory queries with a LIMIT, e.g.:

MATCH (n) RETURN n LIMIT 100

To get a feel for the schema, a good starting point is to expand outward from a single Binding node — the central node type linking a TCR/BCR receptor to the epitope it binds — and follow its relationships a few hops out:

MATCH path = (n:Binding)-[*1..4]->(m) WHERE n.complete = true RETURN path LIMIT 14

For more information on the Graph schema, check out Graph Data Structure. The result should look similar to this:

knowledge graph example

Contributing#

Contributions are welcome! Please feel free to submit a Pull Request or create an Issue if you discover any problems.

License#

This project is licensed under the MIT License - see the LICENSE file for details.

Citation#

If you use IggyTop in your research, please cite it using the following DOI:

DOI

You can find the full citation details on the Zenodo page.

We also provide a CITATION.cff file for customized citations.
